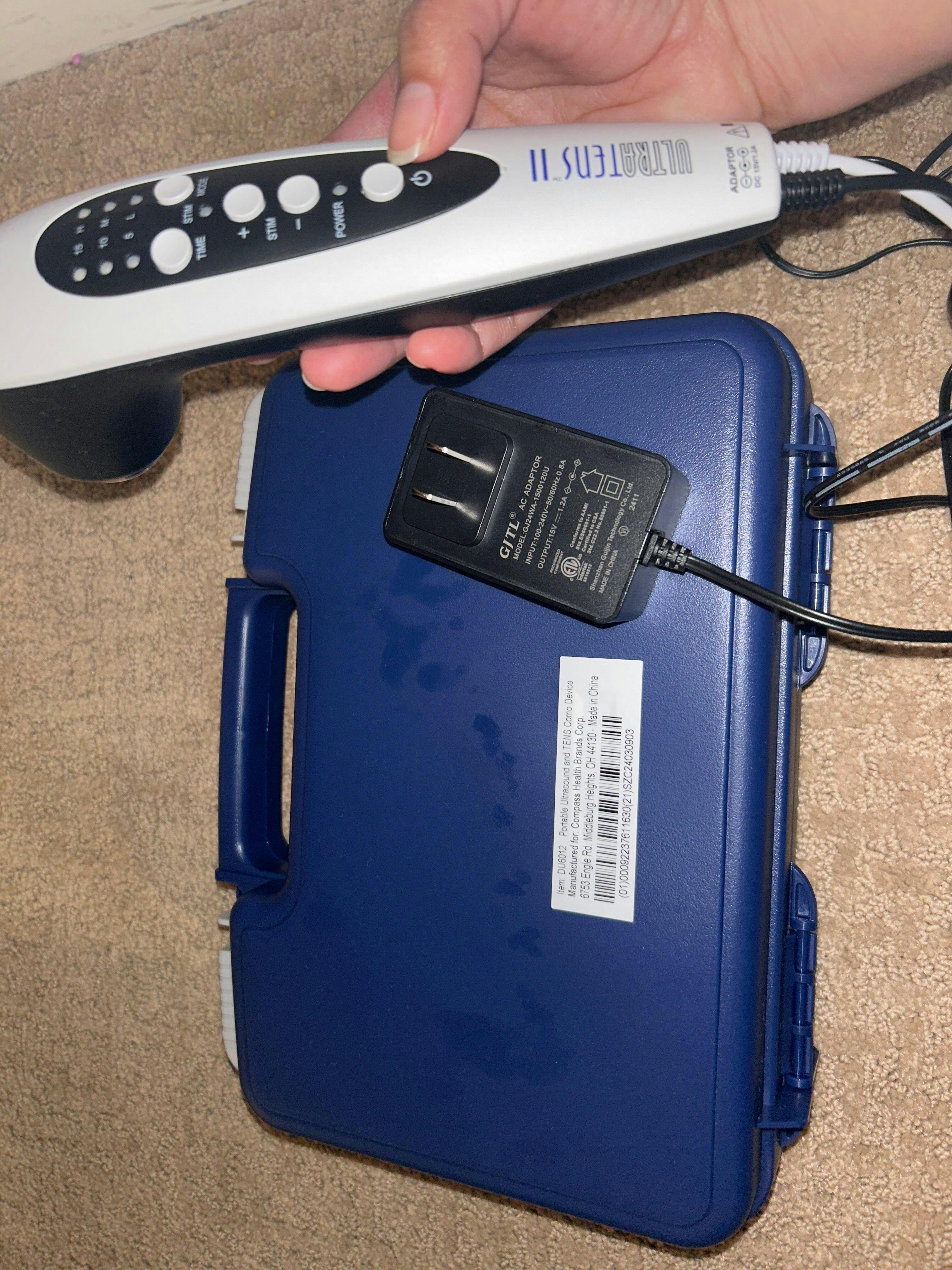

Ultra TENS 2nd Edition 2-in-1 Portable Ultrasound & TENS Combo
SKU: DU6012-01
The UltraTENS™II combines the two most proven therapeutic modalities for pain relief - ultrasound and TENS - into one compact and sleek device. Deep heat from the therapeutic ultrasound, and TENS therapy, can be used simultaneously to help patients treat chronic and acute muscular pain. Clinically tested and FDA-approved.
Product Features:
- Combines therapeutic ultrasound and TENS for patients needing stronger therapy
- Ergonomically designed 5 cm² aluminum soundhead
- Features 1 MHz frequency with 3 power levels and 30 mA of TENS therapy for deep therapeutic treatment
- Beam Non-uniformity Ratio (BNR) 5:1 max
- Small, unique design that is portable and easy to operate
- Three treatment times (5 min, 10 min or 15 min)
- Automatic power shut-off after 10 minutes
- Power Source: AC/DC adapter
- One year manufacturer warranty
- Comes complete with:
- 1x UltraTENS II device
- 1x 2” x 4” white cloth electrode
- 1x set of lead wires
- 1x A/C power adapter
- 1x 2oz tube of ultrasound gel
- Quick start guide and instruction manual
- Hard plastic carrying case
Product Specs:
- Main Device
- Current Consumption: 18W
- Working Current: < 1.1A
- Safety Class: Class II, BF-type
- Device Dimension (LxWxH): 7.9" x 1.9" x 2.8" in
- Weight: 7.4 oz (210g)
- Ultrasound
- Acoustic Frequency: 1 MHz ± 10%
- Temporal Maximum Power: 9.6W ± 20% (duty factor: 100%)
- Pulse Repetition Rate: 100 Hz ± 10%
- Duty Factor: 30%, 40%, 50%
- Effective Radiating Area (ERA): 4.0 cm² ± 20%
- Temporal Maximum Effective Intensity: 2.4W/cm²
- BNR (max): 5.0
- Beam Type: Collimated
- Waveform: Pulsed
- Treatment Time: 5 min, 10 min, 15 min
- Material of Treatment Head: Aluminum
- TENS
- Output Characteristics: Constant Voltage (CV)
- Treatment Time: 5 min, 10 min, 15 min
- Output Wave: Bi-phasic square waveform
- Carrier Frequency (C.F.): 2.5kHz
- Sweep Low Beat Frequency (Beat L): 1Hz, 5Hz, 80Hz
- Sweep High Beat Frequency (Beat H): 10Hz, 120Hz
- Maximum Output: 0-15V (at 500O Load)
**Note: Portable Ultrasound may only be returned if the product has NOT been used. Used Ultrasound devices may not be returned due to sanitary health reasons set by the FDA. If you are attempting to return the device due to defect or malfunction with performance, this would go through the warranty and we ask you to please contact us for a warranty claim.
